Merlin FSKT1

Specification

FSKT1 Profile – 170mm x 50mm Shown with mounted accessories for illustration purposes only
Pack Qty: 1 x 3 Metre Length Supplied Complete – Base Unit & 3 Cover Profiles

Available in a range of colours

Also available in woodgrain & metallic finishes, with contrasting lids to meet the requirements
of Part M (DDA)

Specification

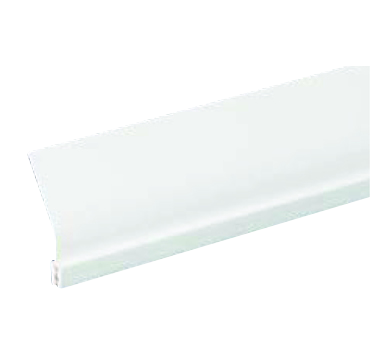

REF: MCRS/1
PACK QTY: 1 x 3m Length

Specification

Single Piece Injection Moulded Clip on direction change accessory

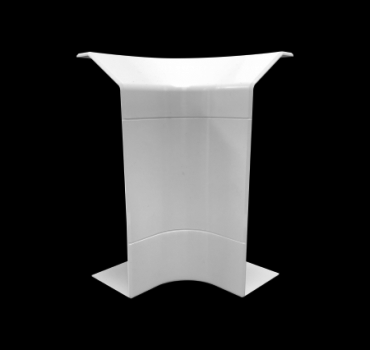

REF: FSKT/IA
PACK QTY: 1

Specification

Single Piece Injection Moulded Clip on direction change accessory

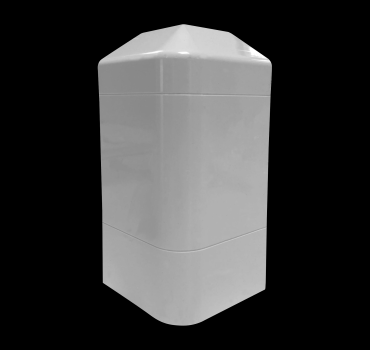

REF: FSKT/EA
PACK QTY: 1

Specification

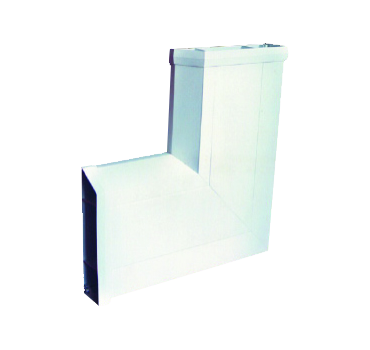

Square Compartment to the outside of the direction change/Chamfered Compartment to the inside – Fabricated accessory supplied with two external joint covers.

REF: FSKT/FA
PACK QTY: 1

Specification

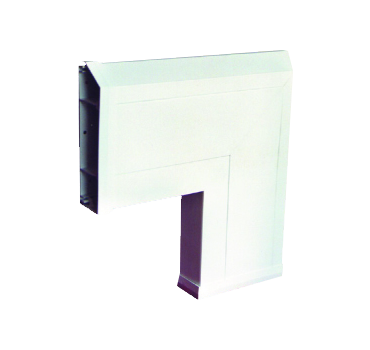

Square Compartment to the inside of the direction change/Chamfered Compartment to the outside – Fabricated accessory supplied with two external joint covers.

REF: FSKT/FA/D
PACK QTY: 1

Specification

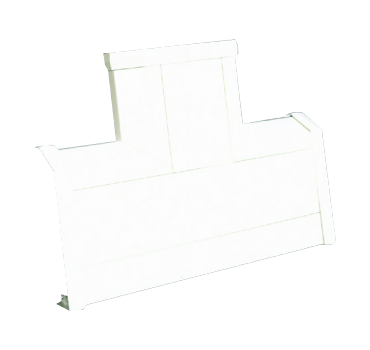

Flat Tee (Branching off Chamfered Compartment)

Fabricated Accessory supplied with 3 external joint covers

REF: FSKT/FT
PACK QTY: 1

Specification

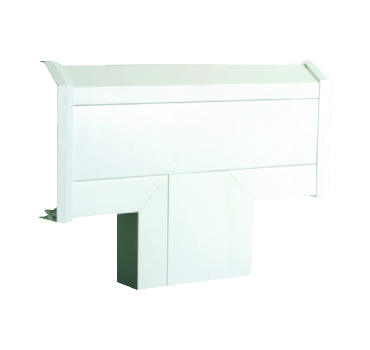

Flat Tee (Branching off Square Compartment)

Fabricated Accessory supplied with 3 external joint covers

REF: FSKT/FT/D
PACK QTY: 1

Specification

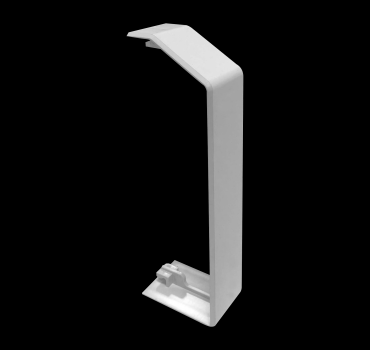

REF: FSKT/SC
PACK QTY: 5

Specification

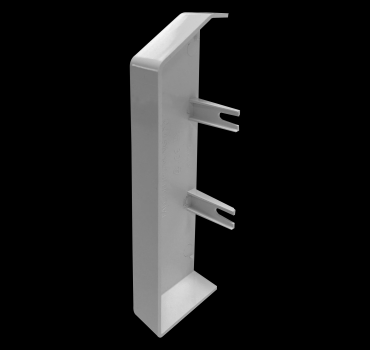

End Caps should be secured into position using round head screws and washers. The screws should pass through the base profile and into the fabric of the building (as shown below).

REF: FSKT/LSE
PACK QTY: 1

Specification

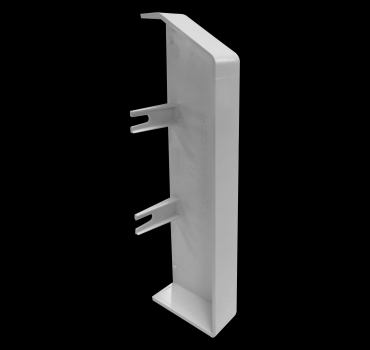

End Caps should be secured into position using round head screws and washers. The screws should pass through the base profile and into the fabric of the building (as shown below).

REF: FSKT/RSE
PACK QTY: 1

Specification

Cable Retainer (Centre Compartment)

REF: FDT/CCR
PACK QTY: 5

Specification

Specifications

Installation guide PDF:
Merlin security backplate installation guide – revision 3
